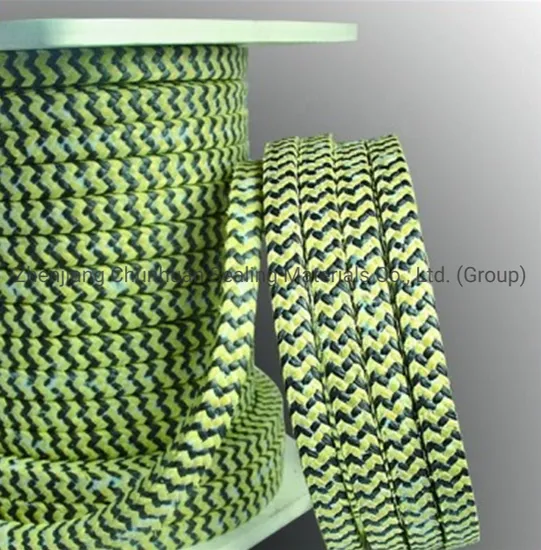

![Graphite PTFE Aramid Fiber Packing Kevlar Braided Packing for Pump](/uploads/s/91c5cbda13ea438990f201e52e1fa5ba.webp)
Graphite PTFE Aramid Fiber Packing Kevlar Braided Packing for Pump
Graphite PTFE Aramid Fiber Packing Kevlar Braided Packing for Pump DESCRIPTION OF GOODS Made from Graphite PTFE fiber (G
Send your inquiryDESCRIPTION
Basic Info
Model NO. | PTFE Packing |
Certification | RoHS, REACH, ISO, FDA |
Customized | Customized |
Type | Double-Side Tape |
Feature | Retractable Smooth, High Strength, Waterproof |
Color | Black |
Material | PTFE |
Transport Package | Wooden Boxes and Can as Your Request |
Specification | as your request |
Trademark | chunhuan |
Origin | Zhenjiang |
HS Code | 39209910 |
Production Capacity | 20ton/Month |
Product Description
Graphite PTFE Aramid Fiber Packing Kevlar Braided Packing for Pump
DESCRIPTION OF GOODS
Made from Graphite PTFE fiber (GFO similar) or expanded PTFE fiber and Kevlar aramid fiber combined braided.It has good sliding velocity,high pressure and thermal conductivity.It is recommended for piston pumps up to 500 bar and centrifugal pumps with high pressure and high speed.
CATEGORIES:
Teflon (PTFE) Braided Packing, also called seal packing is braided by soft strands and filled with strips of square, rectangular and circular cross-sectional to achieve sealing.
White PTFE packing | into oil and non-oil PTFE packing |
Black PTFE packing | into oil and non-oil PTFE packing |
Other PTFE braided packing | aramid corners Black PTFE packing, separate wire PTFE packing, etc. |
Expanded PTFE Packing W/Kevlar Fiber On Corner Graphite PTFE Packing W/Kevlar Fiber On Conrer Expanded PTFE And Kevlar Fiber Combined Packing Graphite PTFE And Kevlar Fiber Combined Packing
FEATURES:
-Certain plasticity
-Chemical stability
-Impermeability and temperature resistance
-Good self-lubricating
APPLICATION:
Centrifugal pumps, compressors, vacuum pumps, mixers and ship propeller shaft seals, piston pumps, reciprocating compressors , reciprocating chiller seal, and a variety of rotating the valve stem seals, etc.
SECIFICATION:
Length&width size:3-50mm, for example: 3*3,4*4,50*50
MAIN TECHNICAL INDICATOR:
Property | ||||
Pressure | 10Mpa | 10Mpa | 3 - 30Mpa | 10Mpa |
Working Temperature | 260ºC | 260ºC | 280ºC | 260ºC |
Line Speed | 10m/s | 10m/s | 0 - 20 m/s | 10m/s |
PH Value | 0 - 14 | 0 - 14 | 0 - 1 | 0 - 14 |
About our factory:
> Our factory is located in Yongsheng Industrial Development Zone,Yangzhong City,Jiangsu, which has convenient transportation and elegant surrounding. You are warmly welcome to visit our factory.
-> We are a Professional PTFE manufacturer.
-> We specialize in PTFE which include sheet, bar, tube, tape, film, gasket, braided packing and all special type components. We can meet your special demand.
-> Pls feel free to contact me.I will try my best to answer your questions about our products.
Related Products
-
ANSI Class 150lbs 300lbs 600lbs 900lbs 1500lbs DIN Pn6/Pn10/Pn16 GOST / JIS Yellow Carbon Steel with PTFE teflon spiral Wound Gasket
-
Asbestos Gasket Gland Packing with PTFE and Oil Used in Valve Pump
-
Ceramic Fiber Rectangular Braided Packing for Heat Protection
-

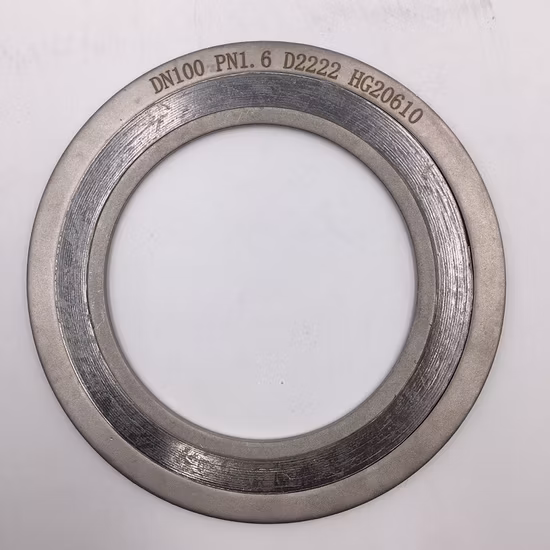

Spiral Wound Gasket Made of 304ss, 316ss, CS
